The Invisible Cost Black Hole

Every warehouse has a cost nobody thinks is big — until the annual total lands: stretch film. A warehouse shipping 500 pallets a day easily burns through $40K+ (¥300K) of stretch film a year. And most still wrap by hand — a worker circling the pallet with a film roll, tension entirely by feel, 1 meter of film wrapping 1 meter of freight.

The core secret of an automatic stretch wrapper is one phrase: pre-stretch. That same meter of film, through a 250% pre-stretch carriage, becomes 3.5 meters — cutting film consumption by 60%+. This article unpacks pre-stretch principles, machine selection, and film-consumption math so you can see this invisible bill clearly.

1. Pre-Stretch Explained: Making 1 Meter Work Like 3.5

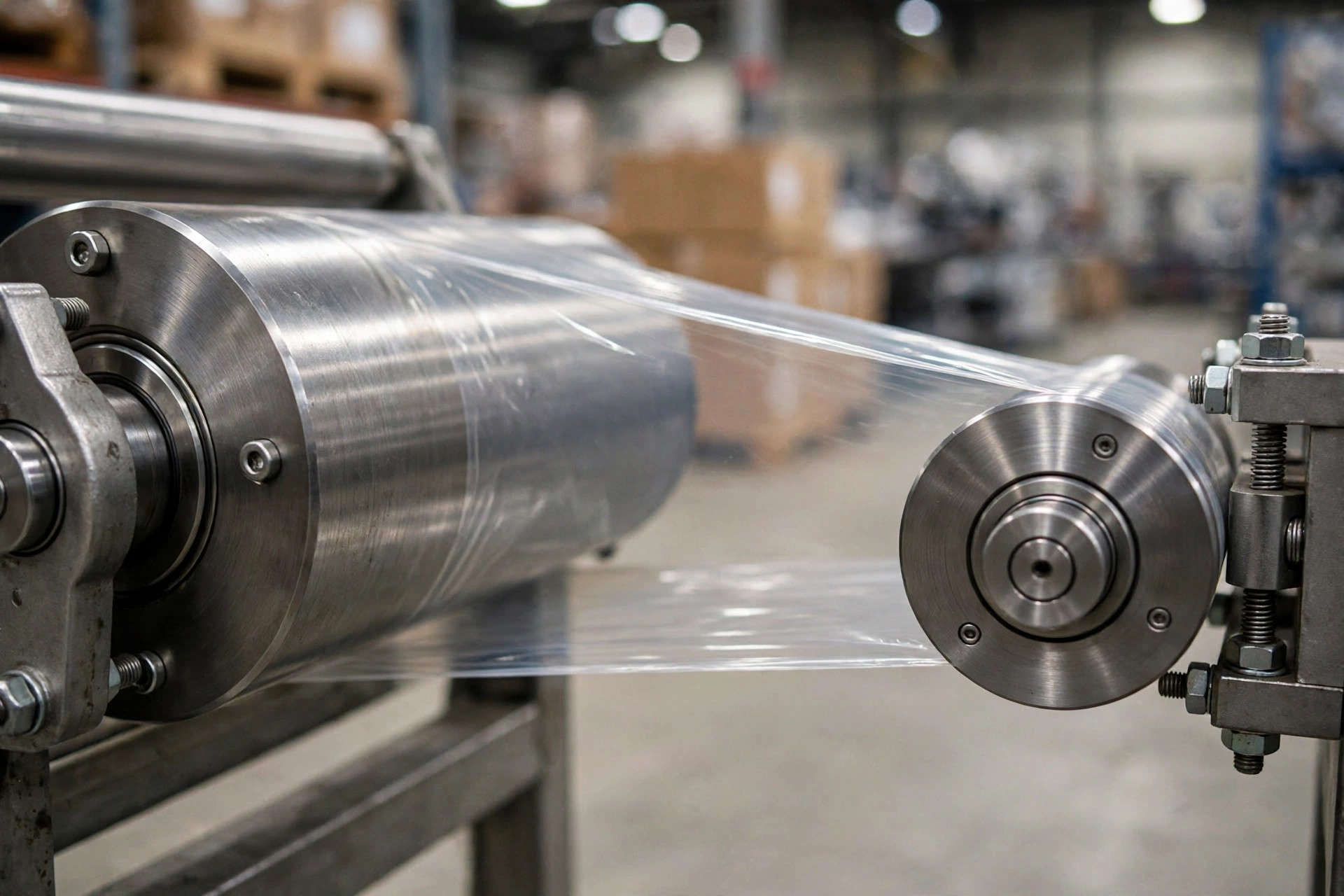

Close-up of the pre-stretch roller mechanism

Pre-stretch is simple: before film touches the load, it passes through two rollers spinning at different speeds that "pre-elongate" it. Stretched film gets thinner and wider, covering multiples of the area.

Pre-stretch ratio = (stretched length − original length) / original length × 100%. Three mainstream tiers:

  • 150% pre-stretch: entry level — 1 m becomes 2.5 m. Simple carriage, cheap machine, modest savings;
  • 250% pre-stretch: the mainstream — 1 m becomes 3.5 m. Balances savings with film strength; the choice for most warehouses;
  • 300%+ pre-stretch: premium — 1 m becomes 4 m+. Demands top-grade film; cheap film snaps mid-stretch.

One counterintuitive point: higher pre-stretch means thinner film and lower per-layer strength — compensated with an extra wrap or two. So 300% isn't automatically optimal; film quality, load weight, and transit distance must be weighed together.

2. Machine Types: Turntable, Rotary Arm, Rotary Ring

| Type | Principle | Throughput | Best for | |---|---|---|---| | Turntable | Pallet spins, carriage fixed | 20–40 pallets/hour | General default, light standard pallets | | Rotary arm | Carriage orbits, pallet still | 30–60 pallets/hour | Heavy/unstable loads, higher throughput | | Rotary ring | High-speed ring carriage | 60–120 pallets/hour | Very high throughput, in-line end of production |

Selection logic: first, how heavy and stable are the pallets — heavy (1 ton+) or tip-prone loads want rotary arm, where the pallet never moves; then throughput — turntable suffices under 40 pallets/hour, arm or ring above; finally, in-line or standalone — continuous production lines want ring machines on conveyors.

Price bands: turntable $4K–11K, rotary arm $11K–28K, rotary ring $35K–85K. Don't pay for throughput you'll never use — and don't let a cheap machine throttle the whole line.

3. Film Consumption Math: How Much Film per Pallet?

Film consumption is the heart of selection and negotiation:

Film per pallet (m) = pallet perimeter × wrap count / (1 + pre-stretch ratio)

Example: a 1.2 m × 1.0 m pallet, 4.4 m perimeter, 6 wraps:

  • Hand wrap (no pre-stretch): 4.4 × 6 = 26.4 m;
  • 250% pre-stretch machine: 26.4 / 3.5 ≈ 7.5 m.

That's ~19 m saved per pallet. At $0.021/m (¥0.15/m), $0.40 saved per pallet. At 500 pallets/day, 300 days/year → ~$60K (¥427K) saved annually. An $11K (¥80K) turntable wrapper pays back in under three months — that's the power of pre-stretch.

4. Wrap Patterns: Top and Bottom Wraps Matter

Saved film mustn't mean scattered freight. Wrap patterns balance "savings" against "security":

  1. Reinforced bottom: 2–3 wraps at the base, "locking" film to the pallet against whole-load sliding;
  2. Even middle: 1–2 uniform wraps to secure the cases;
  3. Top finish: 2 top wraps pulled inward, capping the top layer against dust and moisture;
  4. Top sheet (optional): for moisture-sensitive freight, add a top-seal sheet.

One acceptance test: tilt the wrapped pallet 15° (simulating hard braking) — no shifting, no toppling. If it fails, add wraps; don't economize those last meters — one toppled pallet's damage buys a year's film.

5. Matching: Pallet, Throughput, Film

  1. Pallet: measure the largest pallet's diagonal — turntable diameter must exceed it by 20+ cm. Oversize pallets (over 1.4 m) point straight to rotary arm.
  2. Throughput: size to peak pallets/hour × 1.2. Note 40/hour on a turntable is theoretical including load/unload — derate to 80% in practice.
  3. Film: machines at 250%+ pre-stretch demand quality cast film (LLDPE), 20–23 µm. Cheap film snaps under stretch, and the savings evaporate into downtime.

| Selection item | Data to confirm | Common trap | |---|---|---| | Pallet size | Largest diagonal | Turntable can't fit oversize pallets | | Throughput | Peak pallets/hour | Treating theoretical rate as real | | Film quality | Gauge, stretch yield | Cheap film on high pre-stretch = endless breaks | | Load traits | Weight, tip-proneness | Heavy loads on turntables spinning pallets off |

Case Study: 40% Film Savings from a Pre-Stretch Upgrade

Background: a food DC in East China — 600 pallets/day outbound. Previously hand-wrapped: 12 rolls/month (1,500 m each), ~$3,700/month (¥27K) in film, wrap quality at the workers' mercy, endless transit-damage complaints.

Solution: 2 turntable wrappers at 250% pre-stretch (~$9K/¥65K each), standardized pattern (3 bottom + 2 middle + 2 top + wipe-down), switched to 23 µm cast film.

Results: monthly film from 12 rolls to 7; ~$1,500/month (¥11K) saved — $18K/year (¥132K); transit-damage complaints down 60%; $18K (¥130K) invested, payback under 12 months. Workers freed from circling pallets moved to loading — no labor wasted.

Pitfalls

  1. Don't pair cheap film with high pre-stretch: film gauge and stretch yield must match the machine. Bargain film that breaks costs 10 minutes per stop — five breaks a day wipes out the savings.
  2. Don't over-tension: excessive pre-stretch tension crushes cartons, especially light抛货 (low-density goods). Start at medium tension; passing the tilt test is enough.
  3. Check turntable load rating closely: a "2-ton" turntable running 1.8 tons continuously halves bearing life. Size capacity at 1.5× actual maximum weight.
  4. Maintenance = wiping rollers: film residue and dust on pre-stretch rollers degrade the stretch ratio. Five minutes of weekly wiping — don't skip it.

Takeaway

Stretch wrapper selection in one line: pre-stretch ratio decides what you spend; wrap pattern decides whether freight topples. 250% pre-stretch is most warehouses' sweet spot; choose turntable vs. rotary arm on pallet weight and throughput; match film quality to the machine. A machine costing a few thousand dollars saves tens of thousands in film a year — the fastest-payback, least-controversial automation investment there is. Stop letting workers circle pallets with film rolls.
